Feature	Specification
Dimensions (with Stand)	2,575 (W) × 795 (D) × 1,270 mm (H)
Dimensions (inches)	101.4 (W) × 31.1 (D) × 50 (H) in.
Weight (with Stand)	140 kg (309 lb.)

Category Our Machinery

Descriptions

Feature	Specification
Acceptable Media Width	Roll media: 259 to 1,625 mm (10.2 to 64 in.)
Media Thickness	Roll media: Maximum 1.0 mm (39 mil) with liner
Media Weight	Roll media: Maximum 40 kg (88 lb.)
Maximum Roll Outer Diameter	210 mm (8.3 in.)
Core Diameter	76.2 mm (3 in.) / 50.8 mm (2 in.)
Media Take-up System	Max. 210 mm outer diameter / Max. 50 kg (110 lb.)

Feature	Specification
Maximum Printing Width	1,615 mm (63.6 in.)
Maximum Printing Speed	48.5 m²/hr (522.05 ft²/hr) at 360 × 360 dpi, 1 pass
Printing Resolution	Maximum 1,440 dpi
Distance Accuracy	Error less than ±0.3% of distance traveled or ±0.3 mm (0.012 in), whichever is greater

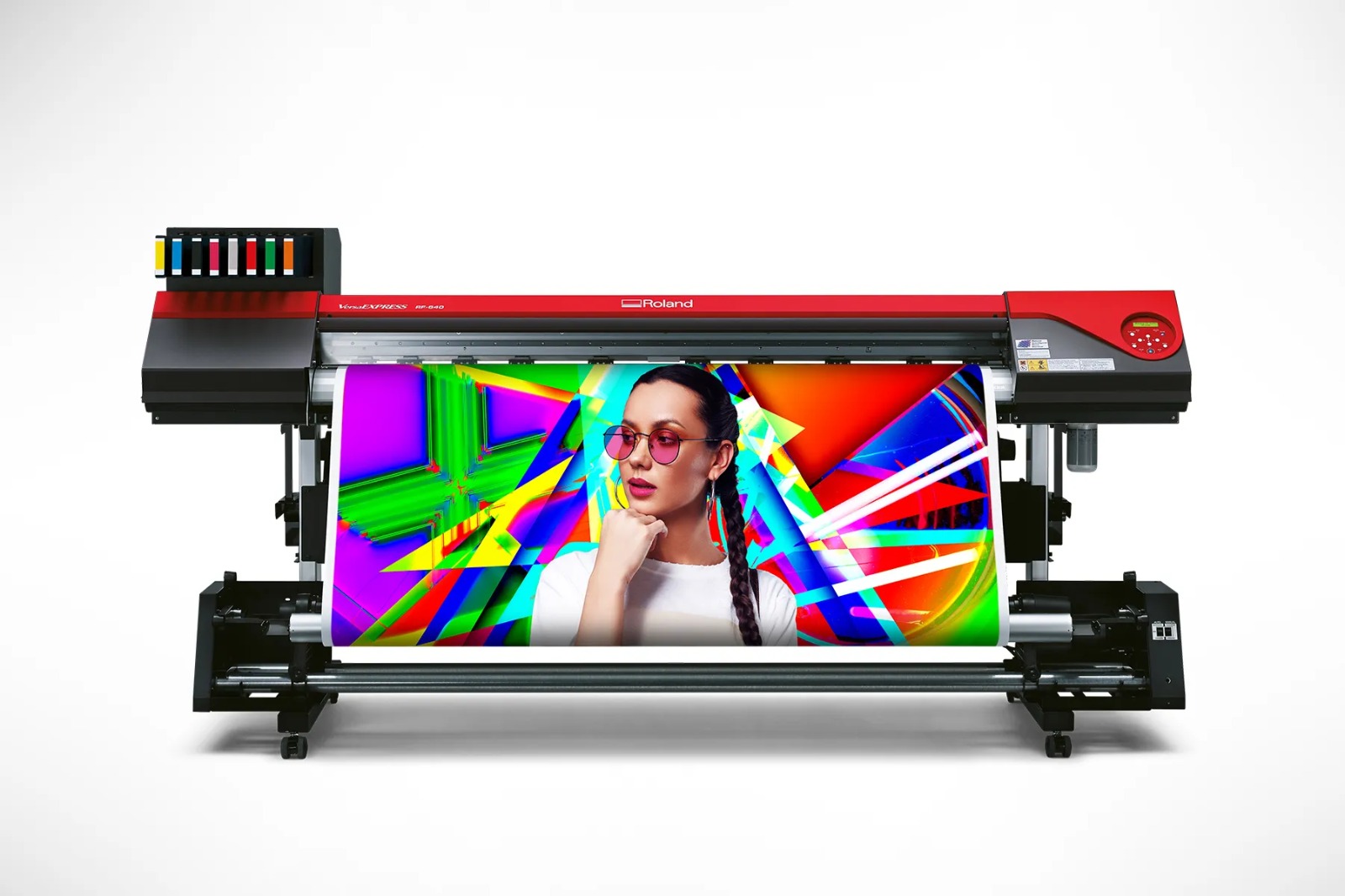

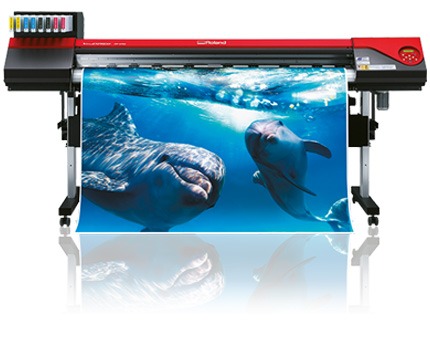

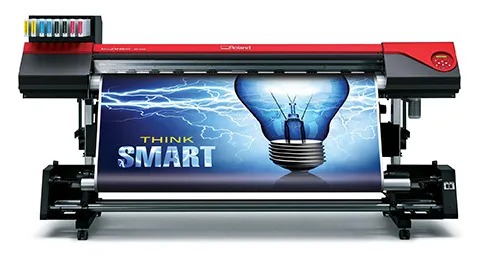

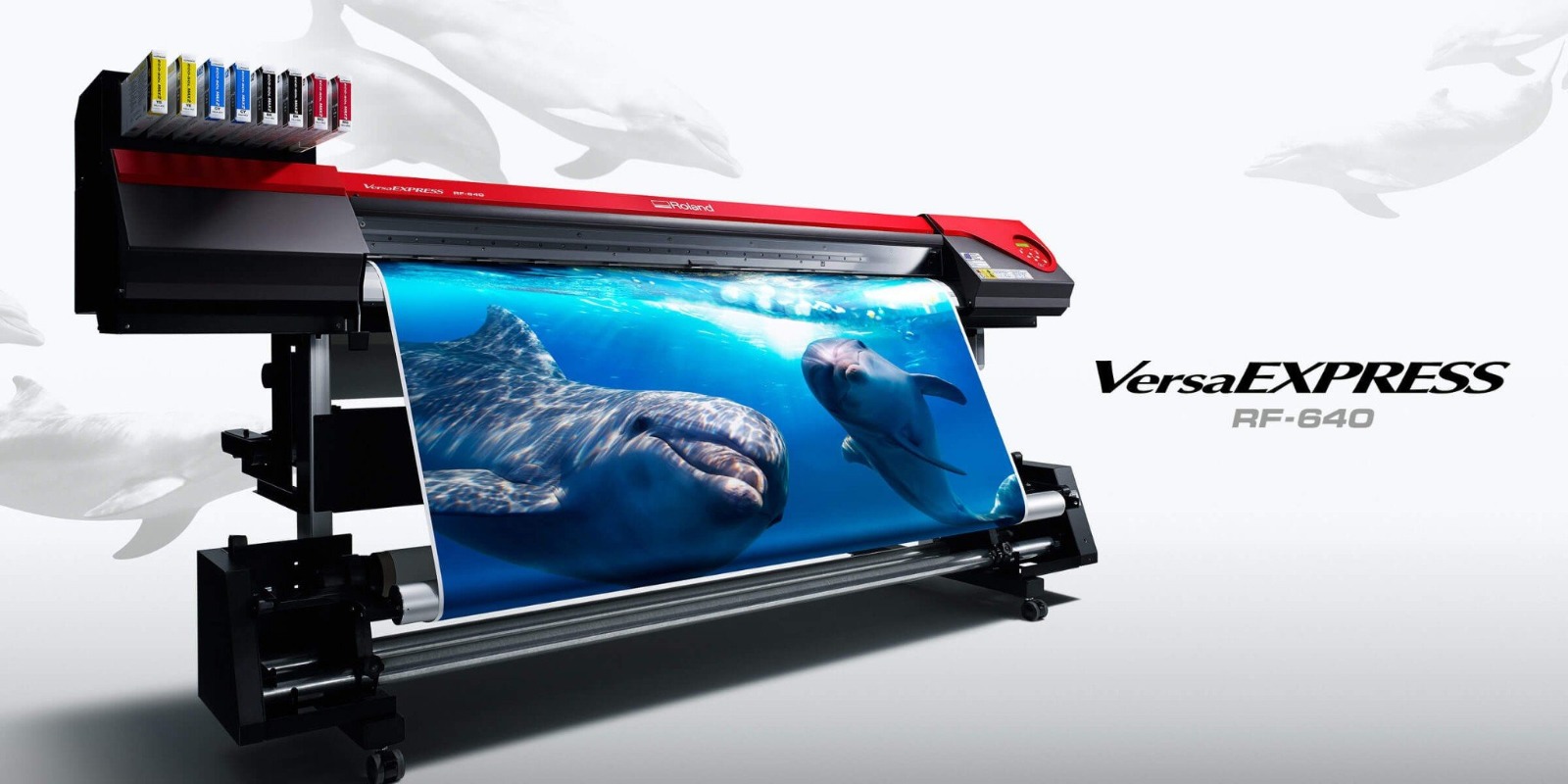

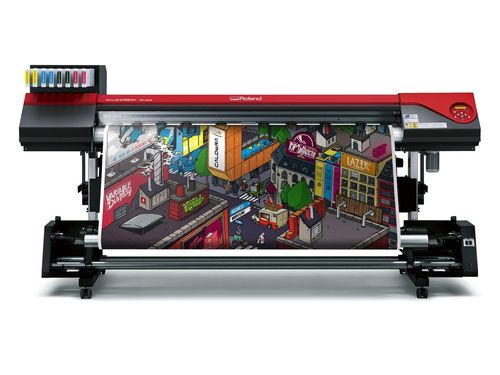

This high-performance wide-format printer is engineered for reliable, high-quality production across a wide range of indoor and outdoor applications. Built on advanced piezoelectric inkjet technology, it delivers precise dot placement, smooth gradients, and consistent color output, making it ideal for signage, banners, posters, vehicle graphics, and display prints.

Supporting roll media widths up to 1,625 mm (64 inches), the printer handles a variety of materials with ease, including vinyl, flex, backlit films, and specialty media. Its robust media handling system accommodates heavy rolls up to 40 kg, with an integrated take-up system ensuring stable, unattended long-run printing. The adjustable print heater and dryer system enables excellent ink adhesion and fast drying for efficient workflow.

Powered by Roland ECO-SOL MAX2 inks, the printer produces vibrant, long-lasting colors with excellent outdoor durability. With print resolutions of up to 1,440 dpi and high-speed output of 48.5 m²/hr, it combines quality and productivity in one versatile solution. Advanced distance accuracy and stable performance ensure precise results even on long prints.

Designed for professional print environments, the printer offers Ethernet connectivity, automatic power-saving features, low operating noise, and energy-efficient performance. Its sturdy construction, compact footprint, and comprehensive accessory package—including stand, take-up system, and RIP software—make it a dependable choice for print shops seeking consistent quality, speed, and reliability.
